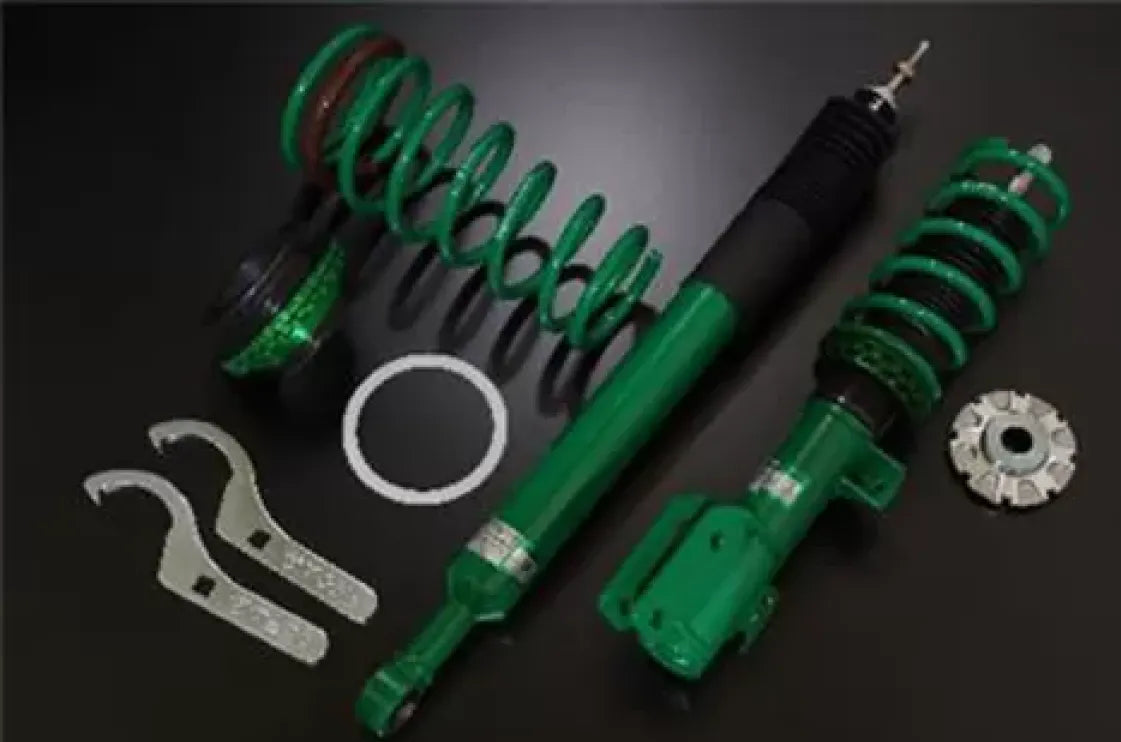

TEIN Street Basis Z Coilover Kit Subaru Impreza WRX | STI 2008-2010

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Features:

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -40
• Recommended Ride Height (inch): -1.6
• Ride Height Adjustable Range:
  • Max Low (mm): -74
  • Max Low (inch): -2.9
  • Max High (mm): -23
  • Max High (inch): -0.9
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended High (mm): -30
  • Recommended High (inch): -1.2
• Spring
  • Rate (kgf/mm): 6
  • Rate (lbs/in): 336
  • SP PART#SY060-13225
  • Free Length (mm): 225
  • I.D. (mm): ID70

Rear Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -35
• Recommended Ride Height (inch): -1.4
• Ride Height Adjustable Range:
  • Max Low (mm): -81
  • Max Low (inch): -3.2
  • Max High (mm): 1
  • Max High (inch): 0
  • Recommended Low (mm): -45
  • Recommended Low (inch): -1.8
  • Recommended High (mm): -25
  • Recommended High (inch): -1
• Spring:
• Rate (kgf/mm): 5
• Rate (lbs/in): 280
• SP PART#S8S95-13050
• Free Length (mm): 250
