Radium Engineering Ccv Fluid Lock Catch Can Kit Scion Fr-S | Subaru Brz | Toyota 86

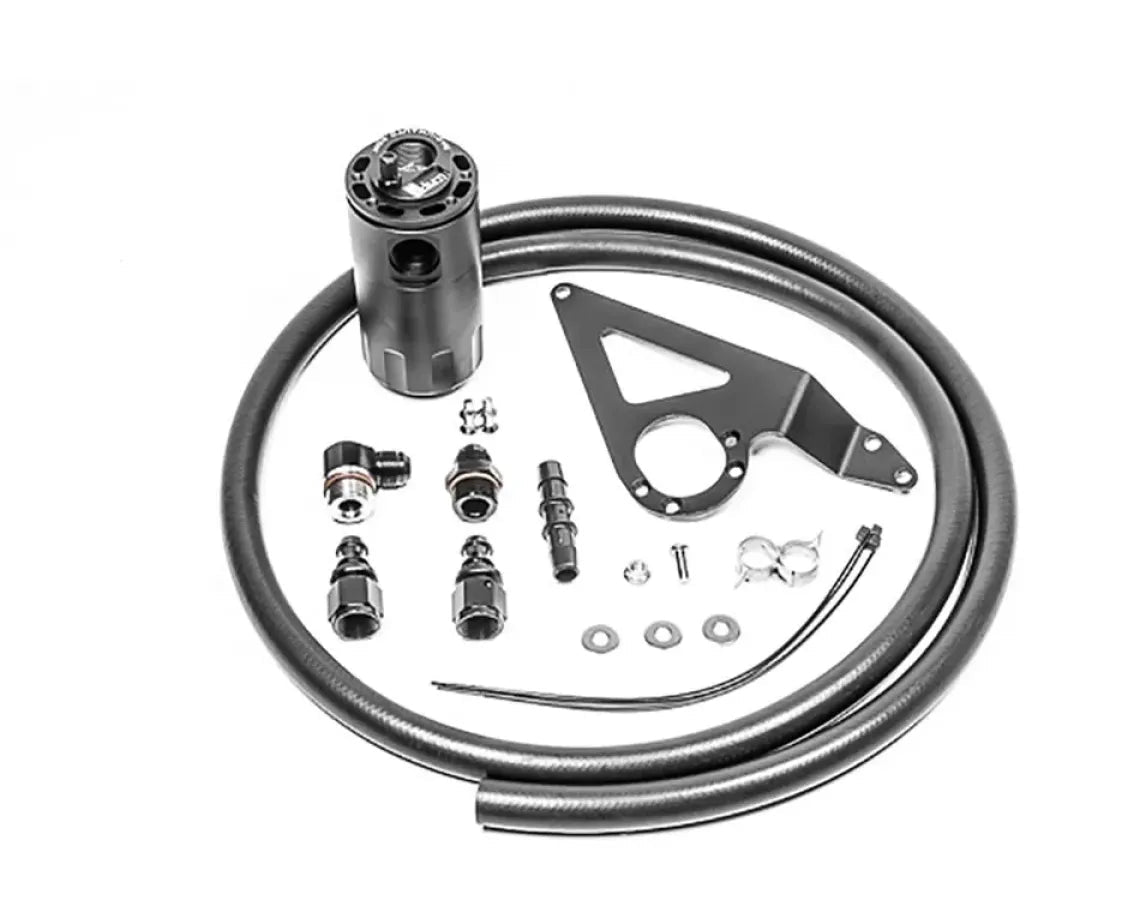

Radium Engineering CCV Fluid Lock Catch Can Kit

If you're looking to protect your engine while enjoying an exhilarating driving experience, the Radium Engineering CCV Fluid Lock Catch Can Kit is just what you need. This essential component helps manage crankcase blow-by, especially when you're pushing your Scion FR-S, Subaru BRZ, or Toyota 86 to its limits. Excess oil-laden air can seep back into the air intake, which can really dampen your vehicle's performance. With this catch can, you're taking a proactive step to keep your engine running smoothly.

Key Features

• Large 10AN ORB ports for efficient oil management
• 4AN ORB drain port for easy maintenance
• Two-step oil separation baffling to enhance filtration
• O-ring sealed dipstick for accurate monitoring

Platform Specifics

This catch can kit is designed with versatility in mind, fitting seamlessly into both Right Hand Drive (RHD) and Left Hand Drive (LHD) vehicles. If you have an RHD setup, just keep in mind that a bit of brake line clearancing is necessary during installation. The kit is compatible with all current aftermarket forced induction systems, making it a perfect match for your performance upgrades. Best of all, you won't need to cut, drill, or make any permanent modifications to your vehicle'just use the factory mounting points!

Independent and Efficient

Each catch can kit operates independently, allowing you to purchase them individually or as a pair. They don't vent to the atmosphere (VTA), keeping you in compliance with emissions regulations'ideal for both street and track use. The closed-loop system routes clean, filtered air back into the engine, promoting negative crankcase pressure for optimal performance while preventing unwanted oil vapors from entering the cabin.

Installation Details

The 20-0902-FL CCV kit conveniently mounts on the left-hand side of the engine bay. It runs inline with the 1/2" breather port, which is crucial for maintaining proper pressure levels. At low loads, it operates under atmospheric pressure, but when you're really pushing your engine (think wide-open throttle), it creates a vacuum that captures unwanted crankcase vapors, unspent fuel, and oil sludge before they can reach your air filter intake. If you're turbocharged or supercharged and dealing with oil buildup in your intercooler, this catch can is an absolute must'it helps maintain the thermal efficiency of your heat exchange process.

Why You Need It

• Reduces oil consumption, effectively raising octane levels
• Cleaner air leads to better engine performance
• Prevents sludge buildup in the intake system
• Lowers hydrocarbon emissions for a greener drive
• Capacity: 7 fluid ounces
• Height (without fittings): 5 inches
• Outside Diameter: 2.45 inches

Compatibility

• Scion FR-S
• Subaru BRZ
• Toyota 86

Upgrade your ride with the Radium Engineering CCV Fluid Lock Catch Can Kit and enjoy a cleaner, more efficient engine that performs at its best!
