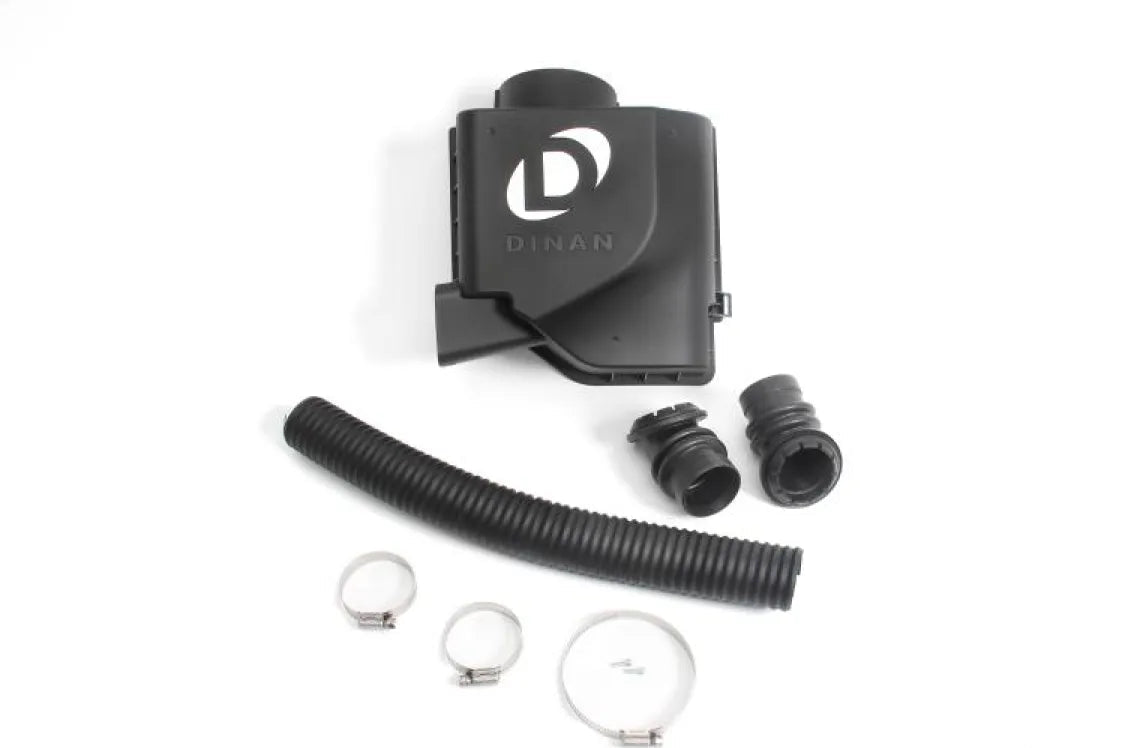

Dinan High Flow Intake System - 2001-2006 BMW 325i

If you're looking to boost your engine's breathing, Dinan's High Flow Intake System is here to help! This system features a specially designed injection molded replacement lid for your stock air box, crafted to increase overall volume and accommodate a high flow filter element. This means you're getting the best possible intake air-flow for your vehicle.

The lid is made from a unique composite material, selected for its impressive ability to resist the heat that can sap your engine's power. Plus, it comes with an O-ring that seals the air box tightly, ensuring maximum pressurization and insulation against heat-soaking. This setup optimizes performance, no matter how you're driving.

But that???s not all! The system also includes a secondary intake duct that channels in extra cool, oxygen-rich air through the factory brake cooling duct. This is a fantastic way to enhance performance as your speed picks up on the road.

Features:

• Air Box Color/Finish: Matte Black
• Air Box Depth (in): 5.1
• Air Box Included: Yes
• Air Box Length (in): 9.9
• Air Box Material: Injection Molded Composite
• Air Box Width (in): 9.6
• Air Filter Element Color: Blue
• Air Filter Element Material: Cotton Gauze
• Air Filter Element Washable: Yes
• Air Filter End Cap Color/Finish: Black
• Air Filter Heat Shield Color/Finish: N/A
• Air Filter Heat Shield Included: No Filter Heat Shield Required
• Air Filter Heat Shield Material: N/A
• Air Filter Inside Diameter (in): N/A
• Air Filter Large End Diameter (in): 4.5
• Air Filter Oil Included: Air Filter Pre-oiled
• Air Filter Outlet Length (in): 0.79
• Air Filter Outlet Shape: Circular
• Air Filter Outlet Width (in): 3.5
• Air Filter Outside Diameter (in): 4.5
• Air Filter Overall Height (in): 5.01
• Air Filter Overall Length (in): 9.5
• Air Filter Overall Width (in): 4.5
• Air Filter Small End Diameter (in): 4.5
• Peak gains of +7 HP @ 6500 RPM/+6 lbs/ft @ 6500 RPM
• Replaces existing airbox cover and adds a second air inlet from the brake duct
• Includes conical free flow air filter
• CARB (California) Compliant: Yes
• CARB EO#: D-176-32
• Clamp Color/Finish: Silver
• Clamp Material: Stainless Steel
• Clamp Quantity Included: 3
• Clamp Type: Worm Gear
• Coupler Color/Finish: N/A
• Coupler Material: N/A
• Filter Color: Blue
• Filter End 1 Outside Diameter (in): 4.5
• Filter End 2 Outside Diameter (in): 4.5
• Filter Material: Cotton Gauze
• Hose Color: Black
• Hose Length (in): 17
• Hose Material: Rubber
• Inside Diameter (in): N/A
• Intake Pipe Color/Finish: N/A
• Intake Pipe Inlet Length (in): N/A
• Intake Pipe Inlet Shape: N/A
• Intake Pipe Inlet Width (in): N/A
• Intake Pipe Material: N/A
• Intake Pipe Outlet Length (in): N/A
• Intake Pipe Outlet Shape: N/A
• Intake Pipe Outlet Width (in): N/A
• Intake Pipe Ports: None
• Mass Air Flow Sensor Adapter Included: Yes
• Mounting Hardware Included: Yes
• Special Fitment Information: N/A
• Vacuum Tubing Color/Finish: N/A
• Vacuum Tubing Included: No Vacuum Tubing Required
• Vacuum Tubing Material: N/A
