CSF 2023+ Honda Civic Type R FL5 High-Performance Dual Engine Oil Cooler Kit

While mounting an additional cooler behind the grill is the simple option, that just adds more heat to the full system and takes away from the cooling capacity of the radiator. On top of that, most owners who track their cars will have an upgraded/larger intercooler which further compounds the issue. That means the sides of the bumper are the obvious and optimal placement. However, the FL5 does not have great airflow in that area. To improve airflow, CSF needed to design a ducting/inlet system that would allow proper airflow for optimal performance.

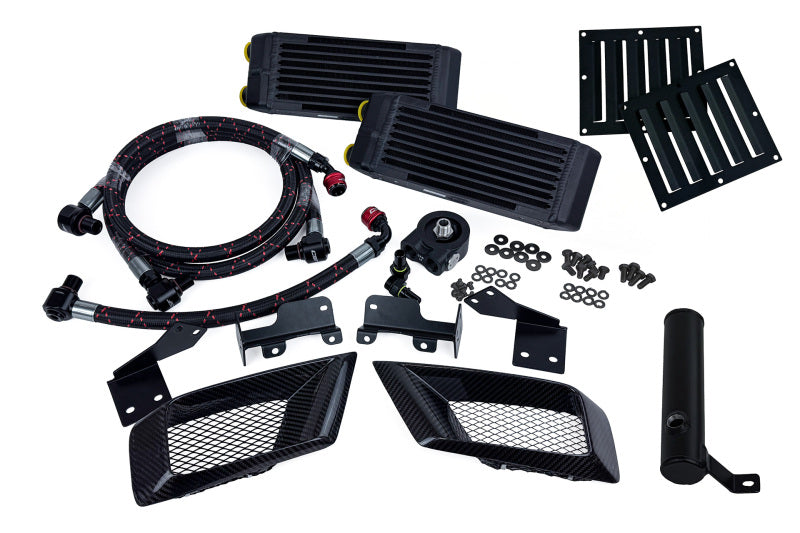

Features and Benefits

• Two CSF #8119 High-Performance Dual Pass Oil Coolers
• Bar/Plate Core offers strength and durability
• 100% TIG Welded Construction tested to 120 PSI
• Smooth 40-degree feed/return fitting design
• Dual Pass flow for additional cooling
• Oil Capacity increased by over 2 Quarts (2 Liters)
• Motorsports grade AN lines with patented quick release fittings by DYME PSI
• 304 Stainless Steel reinforcing braid and Polyethylene top braid
• CNC Billet Machined Sandwich Plate with 175-195°F (80-90°C) Thermostat and 1/8 NPT port aftermarket oil temp sensor
• Pre-Preg Carbon Fiber Bumper Vents for maximum airflow and cooling effect
• Laser Cut Louvered fender liner vents to improve the air flow path and promote heat extraction
• Replacement Washer Fluid Bottle compatible with factory washer motor
• Includes all Brackets and Hardware
• Includes installation instructions and templates
• 2-Year Limited Warranty
